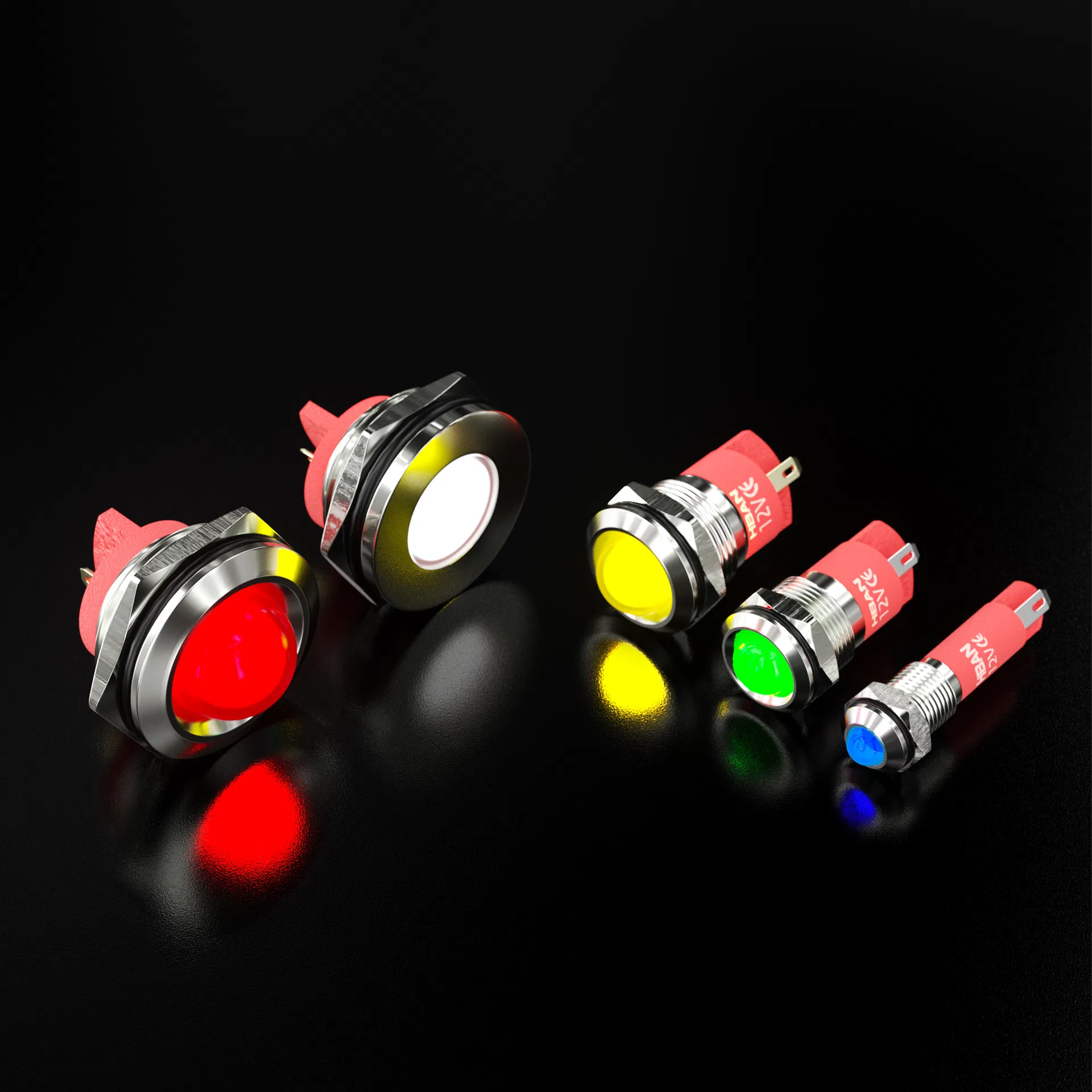

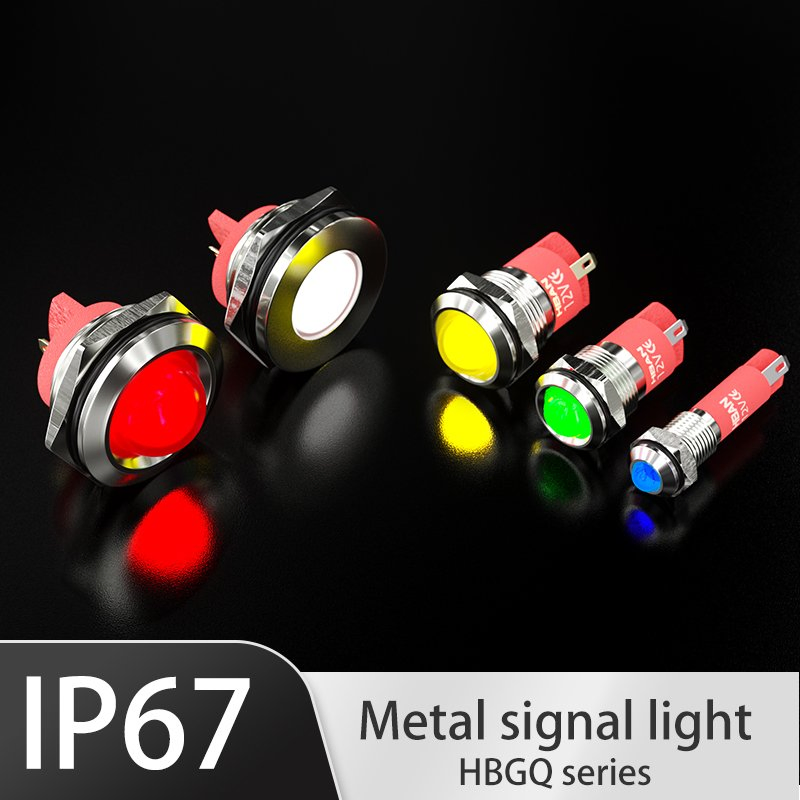

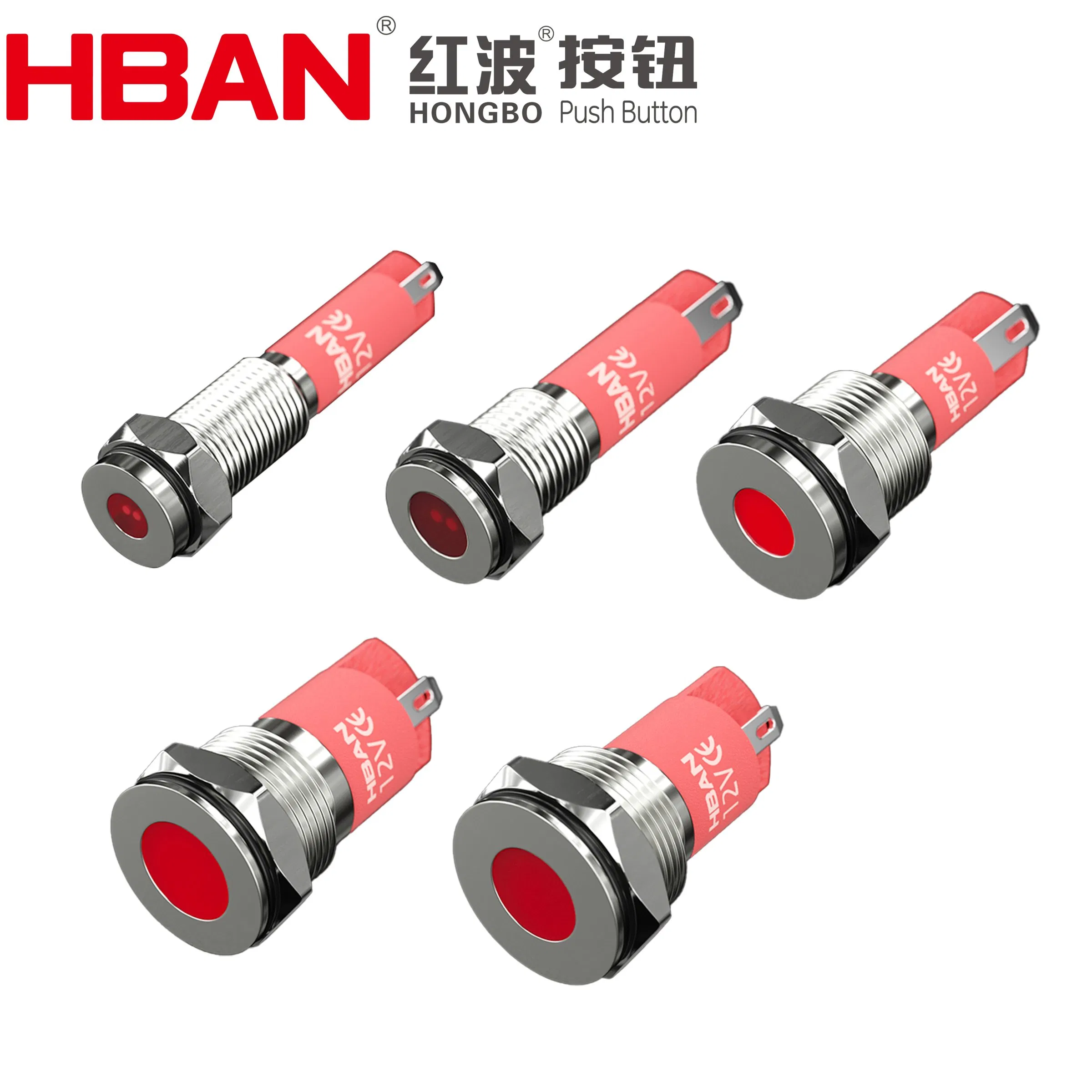

Hban 6-14mm Industrial Flat Face Metal Signal Light with IP67 Waterproof Protection

Product Description

Industrial Flat Face Metal Signal Light with IP67 Waterproof Protection

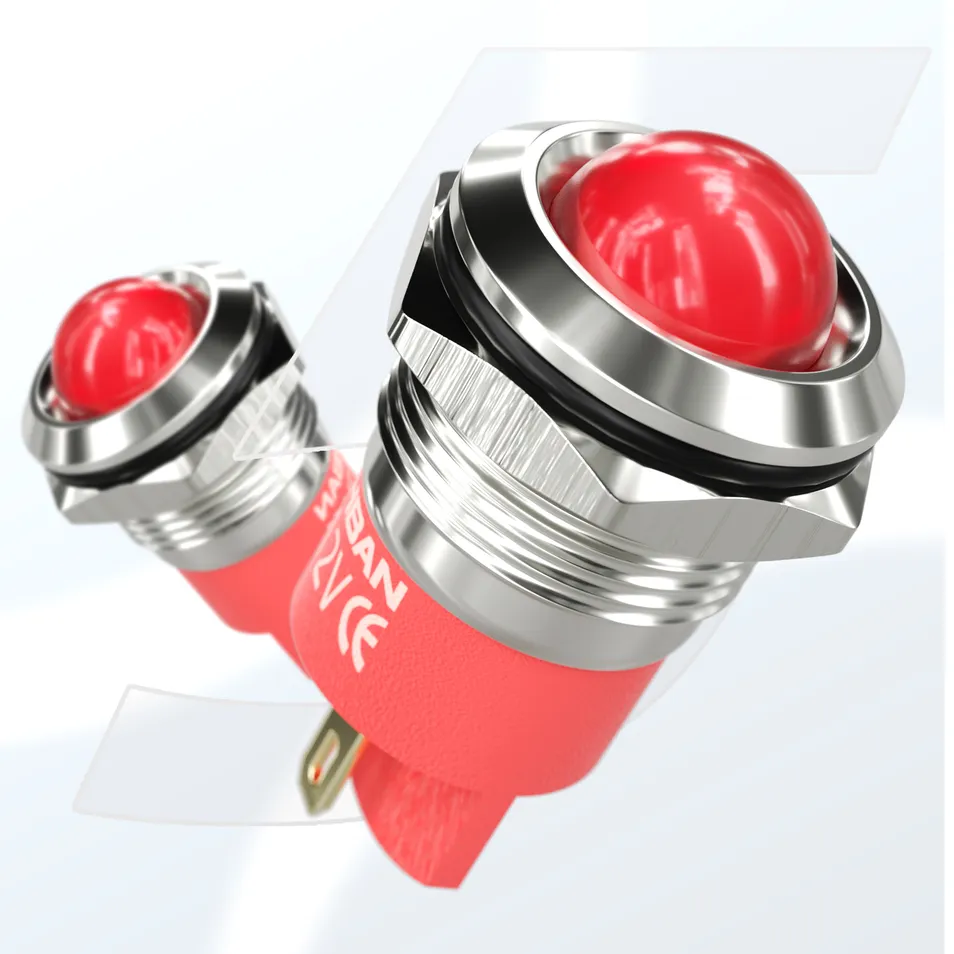

Metal Signal Light Structure
Product Features
  • Impact Resistance and Wear Resistance: The metal housing can withstand accidental impacts, knocks, and friction during installation, use, and daily maintenance, effectively protecting the internal core LED and circuitry. This makes it particularly suitable for applications with strong vibrations and potential impacts, such as mining machinery and heavy equipment.
  • Outstanding Temperature Resistance and Heat Dissipation: Metals (such as aluminum alloy, stainless steel) can withstand higher ambient temperatures than engineering plastics, and are not prone to softening, deforming, or aging due to heat.
  • Natural Heat Sink: Metal is a good conductor of heat, enabling it to rapidly conduct and dissipate the heat generated by the LED chip during operation into the external environment. This effectively extends the LED's service life and prevents light decay.

"Our robust IP67 Metal Indicator Light is engineered for maximum durability and reliability in harsh environments. The sealed metal housing guarantees complete protection against dust, water, and corrosion. This high-intensity LED indicator light provides a clear, unmistakable signal, ensuring operational safety and efficient visual status monitoring for your machinery and control panels."

Design & Head Options

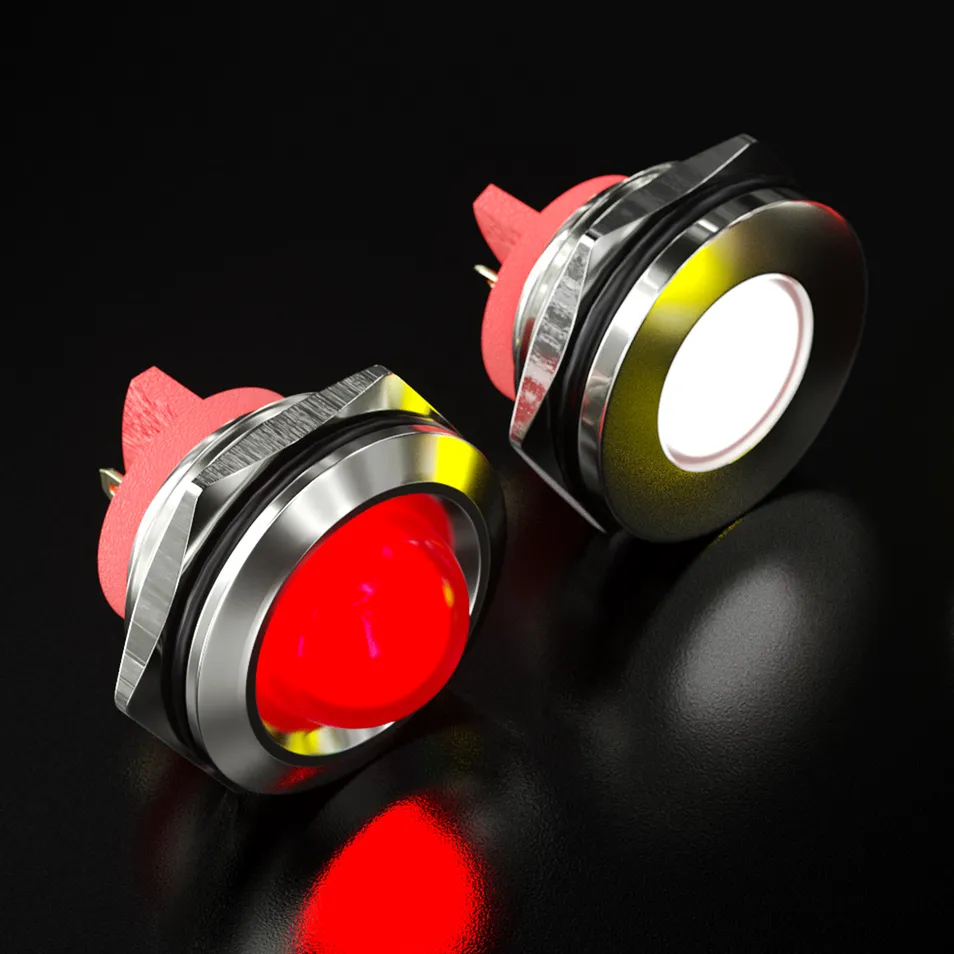

Two different types of heads
Two Different Types of Heads
  • T: Flat shape
  • G: Spherical shape
  • LED Color: Red/Orange/Yellow/Green/Blue/White

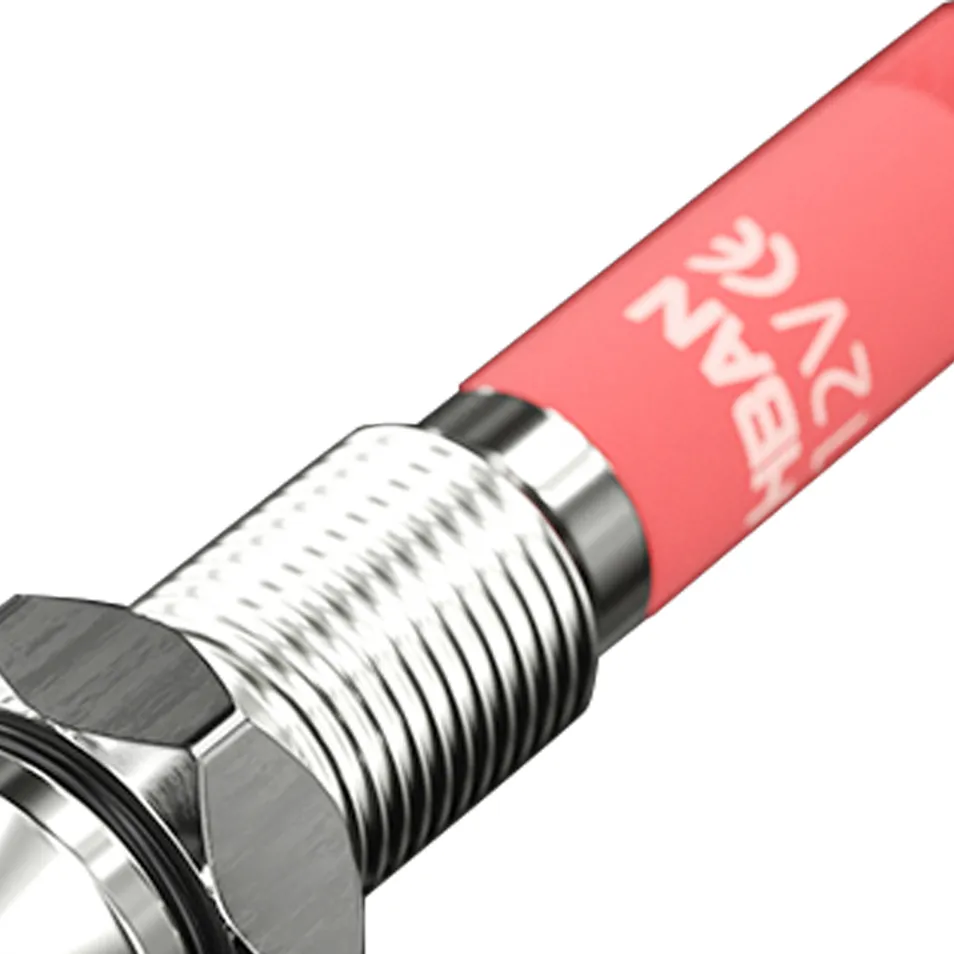

Installation Guide

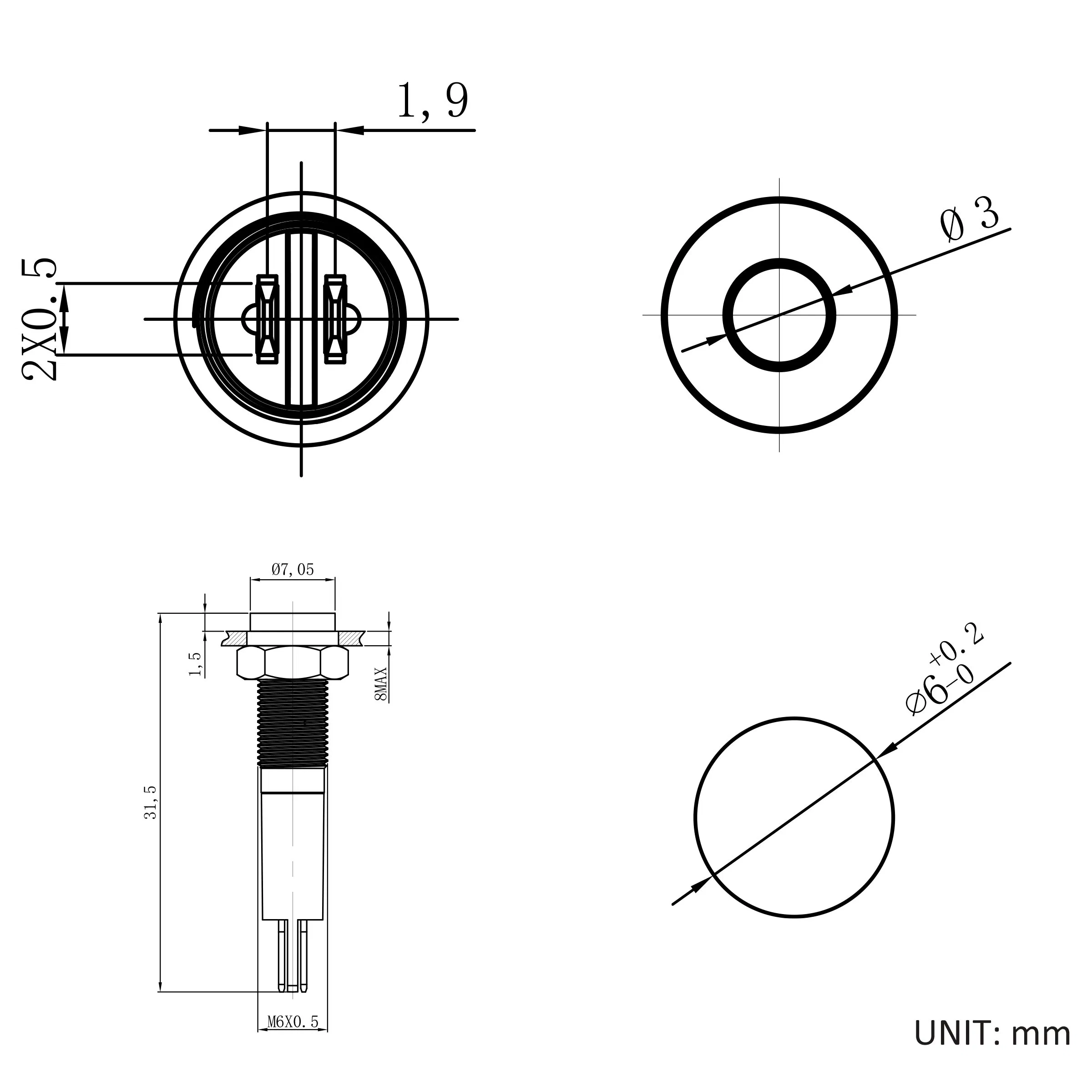

Installation Parameters
  • Mounting hole size: 6mm
  • Structure: Matching O-ring + Nuts
  • Panel thickness: 8mm MAX
Protection & Performance

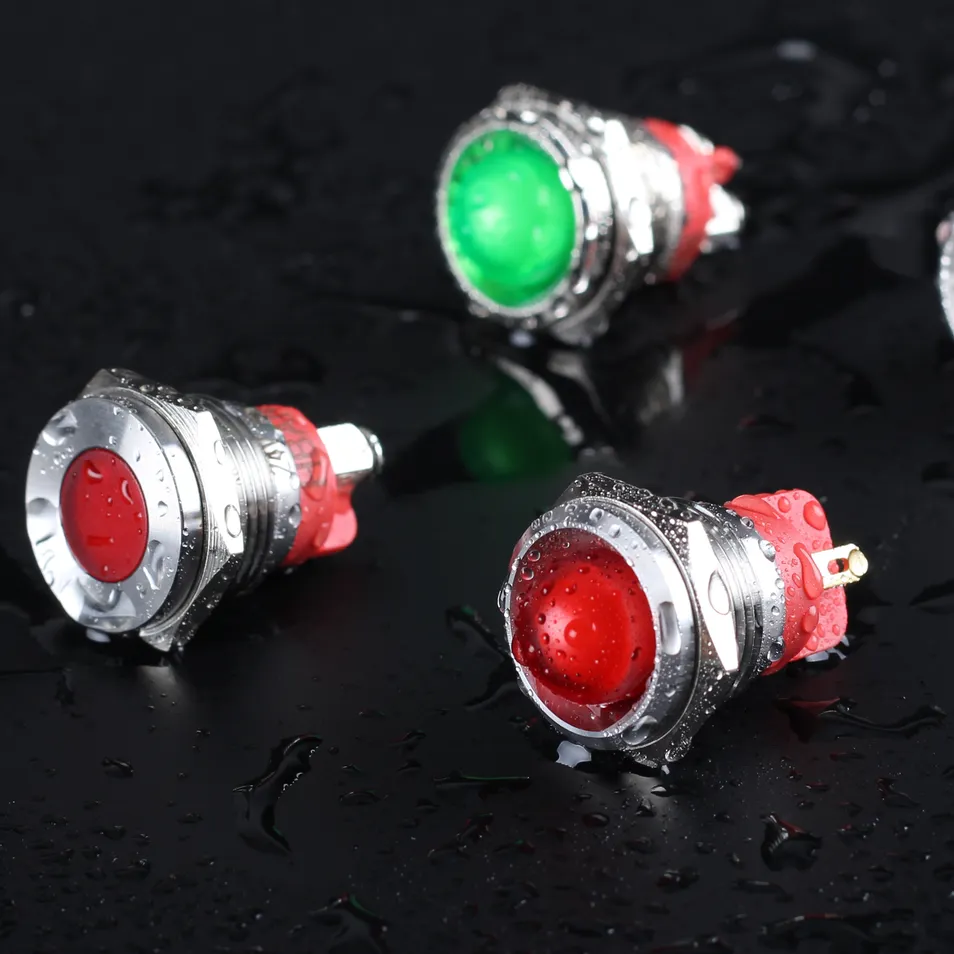

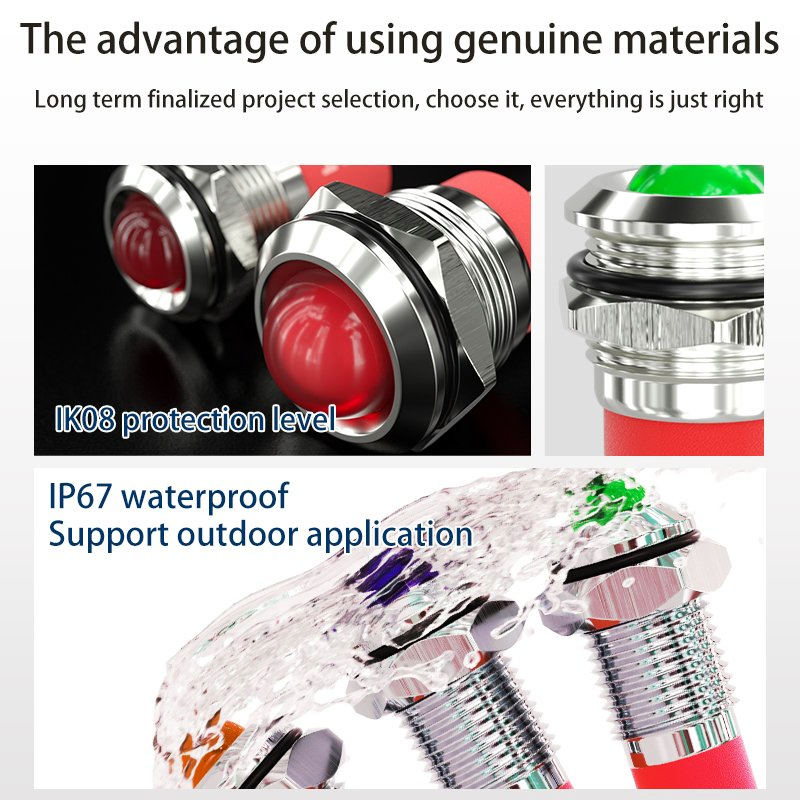

IP67 waterproof protection
IP67 Waterproof Rating
  • Rating Details: IP67, First Digit (Solids): 6 (Dust-tight), Second Digit (Liquids): 7 (Immersion up to 1m).
  • Protection Level: Dust-tight and can withstand temporary immersion (30 minutes at 1m depth).

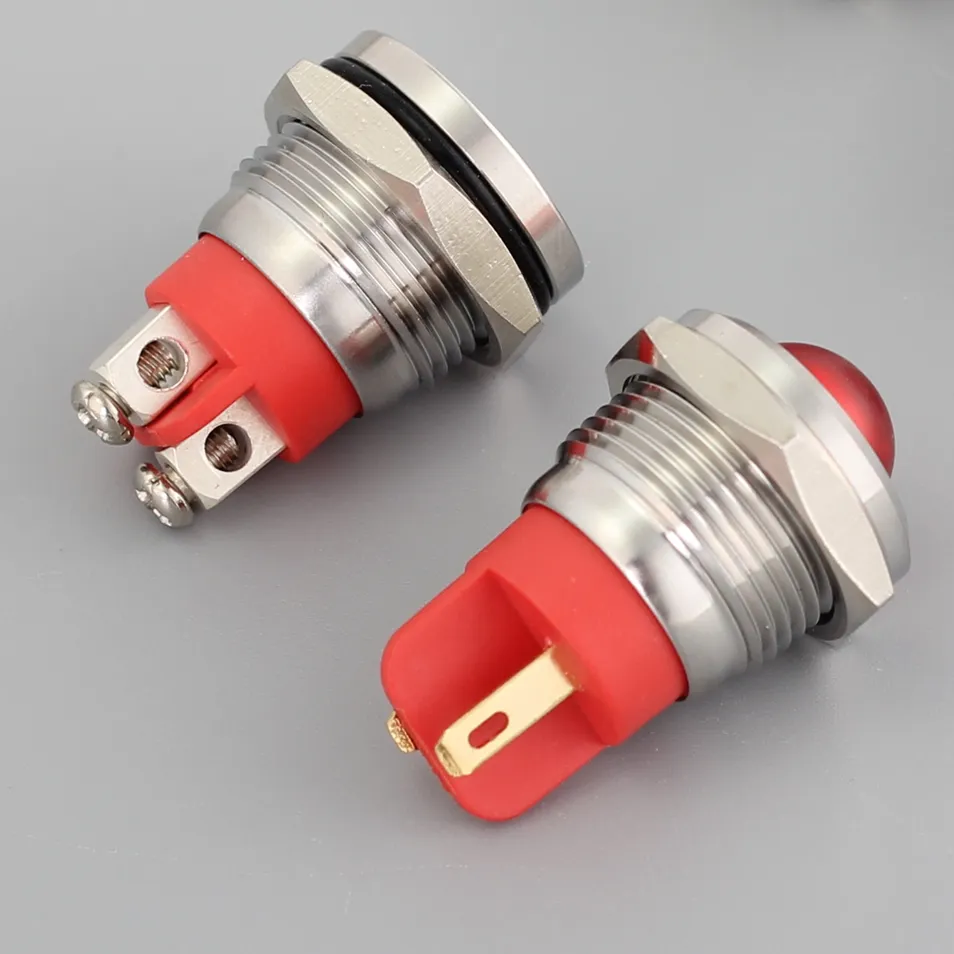

Long lifespan LED
Long Operational Lifespan
  • Rated current: ≤20mA
  • Rated voltage: 3V/6V/12V/24V/36V; 110V/220V
  • Lamp bead life: 50,000 hours
Model Specification
Series Number: HBGQ (This product series specifications)
Neck Mounting Dimensions Ø6mm, Ø8mm, Ø10mm, Ø12mm, Ø14mm, Ø16mm, 19mm, Ø22mm, Ø25mm Standard dimensions
Terminal Type J: Pin terminal, L: Screw terminal, Y: Lead wire -
Head shape T: Flat shape, G: Spherical shape, F: Flat circular shape, DT: Large flat shape, DG: Large spherical shape, M: Flash signal light -
LED Voltage 6V/12V/24V/36V; 110V/220V Other voltages can be customized
Lamp type D: Dot LED, E: Ring LED, P: Plastic cover, SP: Spray painted plastic cover -
Housing material N: Nickel plated brass, S: Stainless steel, T: Aluminum alloy -
LED Color R: Red, G: Green, Y: Yellow, O: Orange, B: Blue, W: White -
Wiring Example
Wiring Example Diagram

1. When powered on, it lights up without distinguishing between positive and negative poles.

Manufacturing Facility
Production Facility
Industrial Applications
Industrial Automation Equipment
Industrial Automation Equipment
New Energy EV Charging Stations
New Energy EV Charging Stations
Marine & Offshore Engineering
Marine & Offshore Engineering
Lab & Testing Equipment
Lab & Testing Equipment
Rail Transit Systems
Rail Transit Systems
Power Control Cabinets & Distribution Systems
Power Control Cabinets & Distribution Systems
Product Exhibition
Product Exhibition
Packaging & Shipping

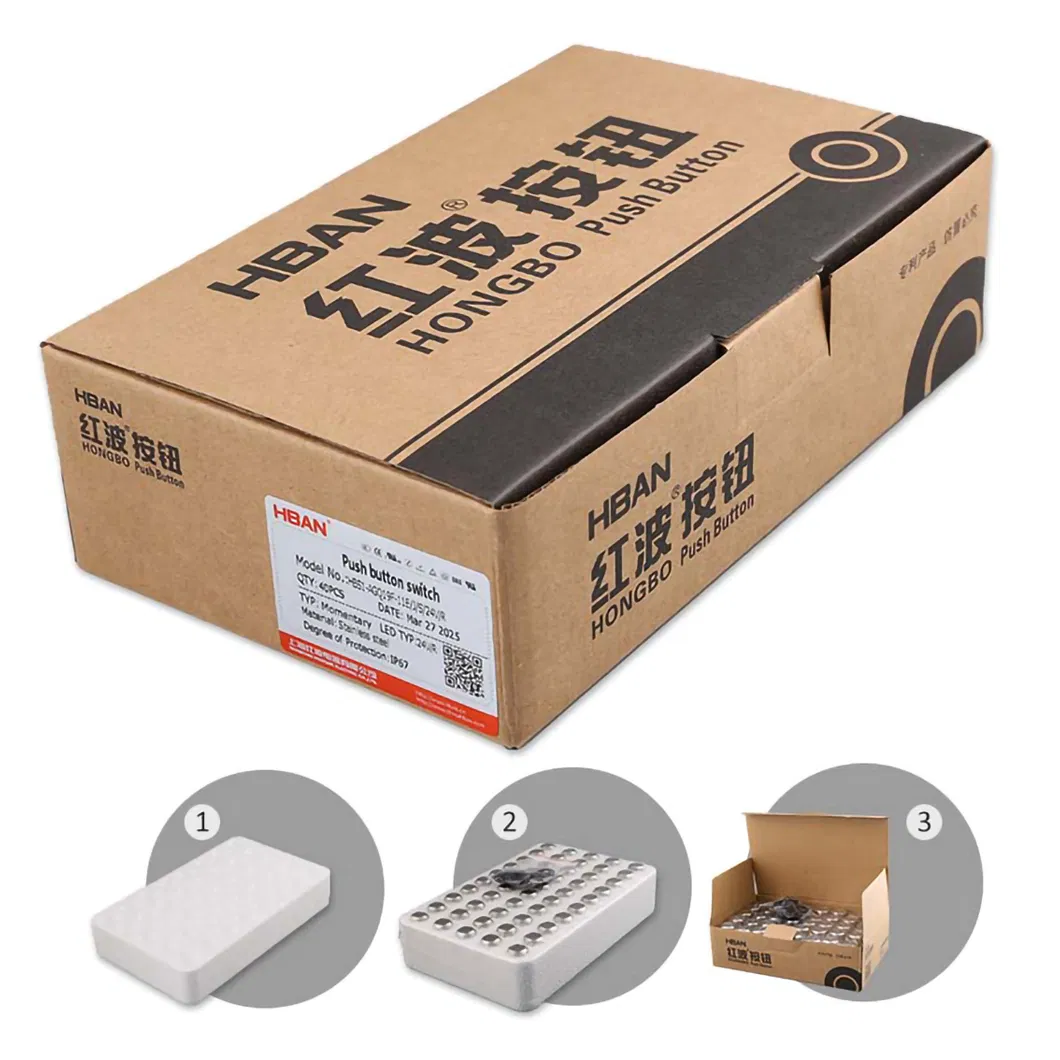

Product Packaging Details
Packaging Details

50pcs/box (Including 50pcs O-ring)

  • Separate foam boxes prevent collision.
  • Corrugated paper boxes are used for final box packaging.
  • Strapping tape reinforcement is applied after final packing.
Shipping Options
Shipping Options
  • Global shipping is fully supported.
  • Items are shipped within 3-7 business days upon payment.
  • Delivery transit time is estimated between 3-8 business days.
Frequently Asked Questions
Are the manufacturing materials eco-friendly?

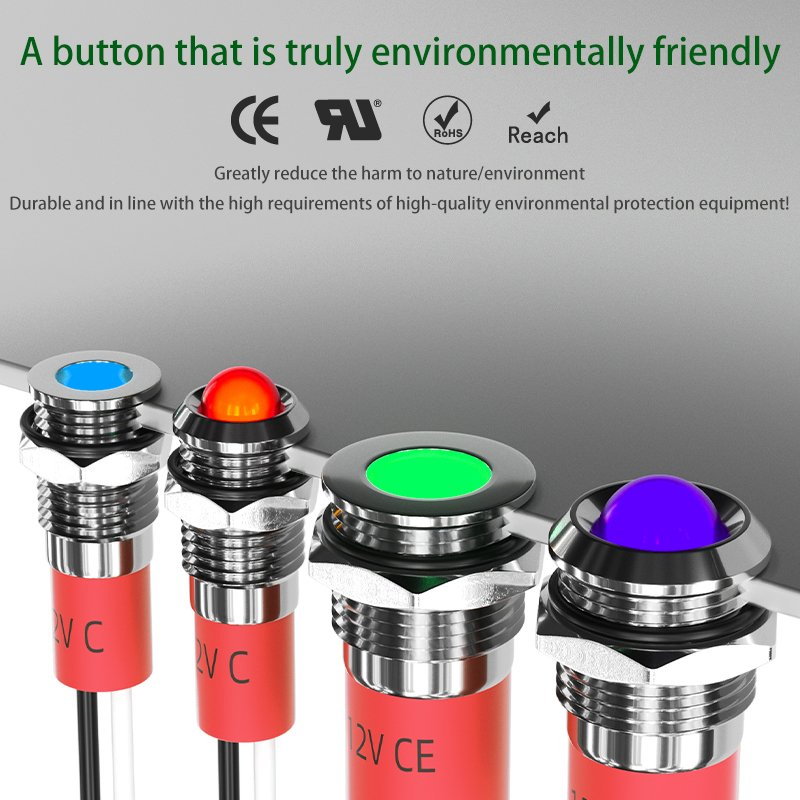

Yes, our products are made of environmentally friendly materials and have passed ROHS and REACH certifications.
Can you provide wiring diagrams or CAD files?
Yes, contact our customer service staff and they will provide the requested documents within 24 hours.
Do you offer OEM/ODM customization services?
Yes, we support OEM/ODM services (such as custom logos and colors). Please note there is a minimum order quantity requirement. Contact our support team for detailed parameters.
What payment methods are supported?
We accept T/T (Wire transfer), Credit Card, and Paypal payments. Please ensure the received payment amount matches the pro forma invoice.
How do you ensure safe transport and prevent product damage?
We cooperate with top-tier express courier services (such as DHL, UPS, FedEx) supporting air and sea transit. We place products in individual compartments within foam boxes before packing them in corrugated boxes, finished with structural strapping tape reinforcement.
Is there a warranty period on the hardware?
Yes, we offer a warranty period of 1 year.
