Hban IP65 Flat Head Signal Light High-Quality LED with a Lifespan of up to 50000 to 100000 Hours

Overview & Basic Info

Basic Info

Model NO.	HB16-22DT-LED voltage-Y
Delivery	3-5 Working Days
The Crust Material	Plastic
Working Temp.	-25ºC ~ +65ºC
Manufacturer	Yes
HS Code	8531801090
Production Capacity	500,000 / Month

Packaging & Delivery

Package Size	21.00cm * 13.00cm * 6.00cm
Package Gross Weight	1.000kg

Product Description

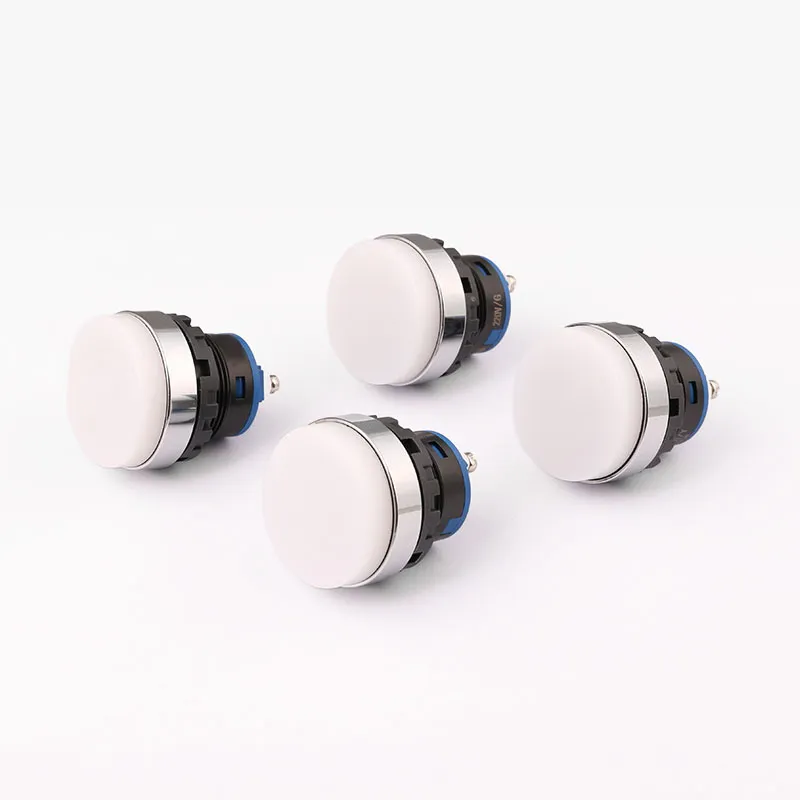

IP65 Flat Head Signal Light High-Quality LED

Material Characteristics & Benefits

Lightweight Design: Plastic has a much lower density than metal, making it easy to install, transport, or hang. Ideal for temporary engineering, traffic diversion, and mobile devices.
Chemical Corrosion Resistance: Strong resistance to corrosive substances like acids, alkalis, and salts. Suitable for chemical and coastal high-humidity environments.
Electric Shock Protection: Non-conductive plastic provides enhanced safety in high-risk areas like power facilities and substations.
Low Maintenance Cost: Rust-free, easy to clean, and highly cost-effective. High-quality engineering plastics offer superior impact and shatter resistance.
High Efficiency: Multiple LED light setups available with large ball heads and high brightness. Plastic casing requires less heat dissipation, lowering overall energy usage.

Color & Installation Specifications

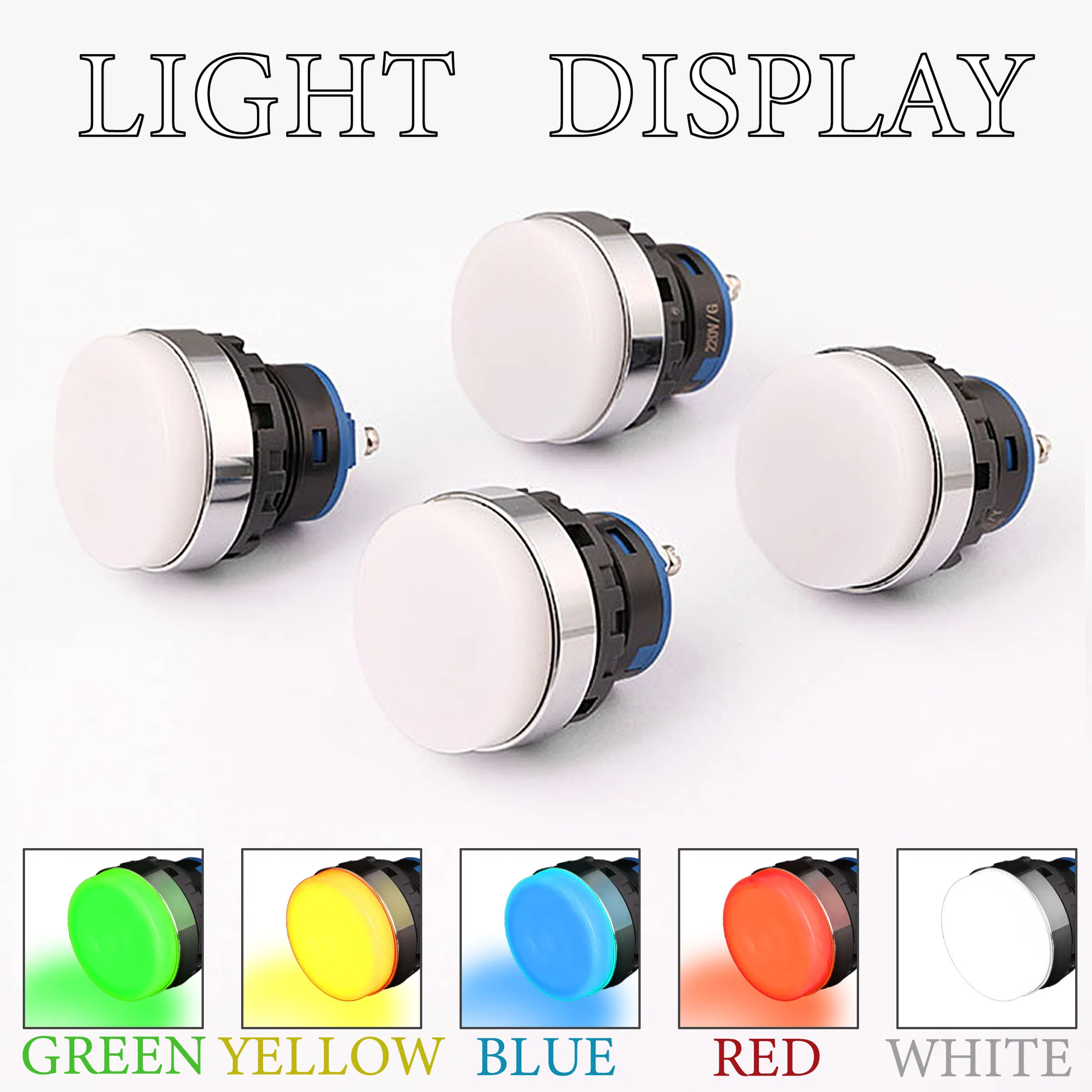

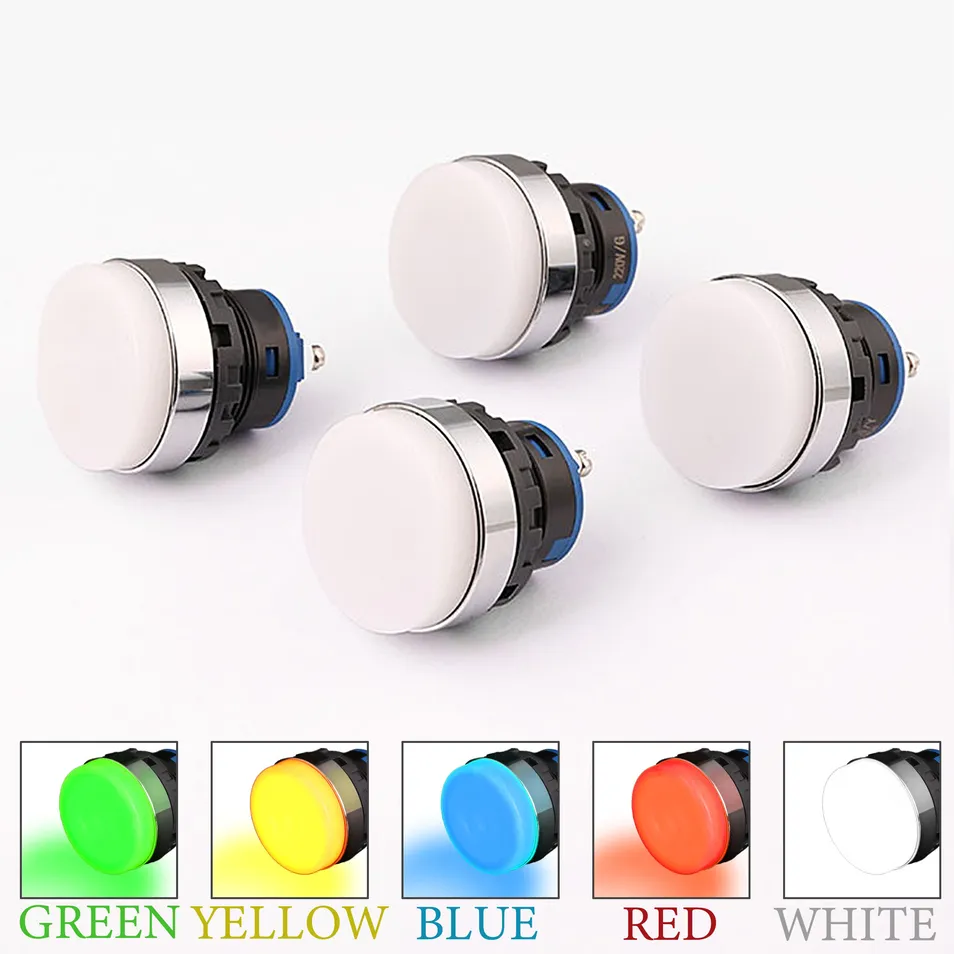

Supports Multi-Color Head: Available in Red, Green, Blue, Yellow, and White.

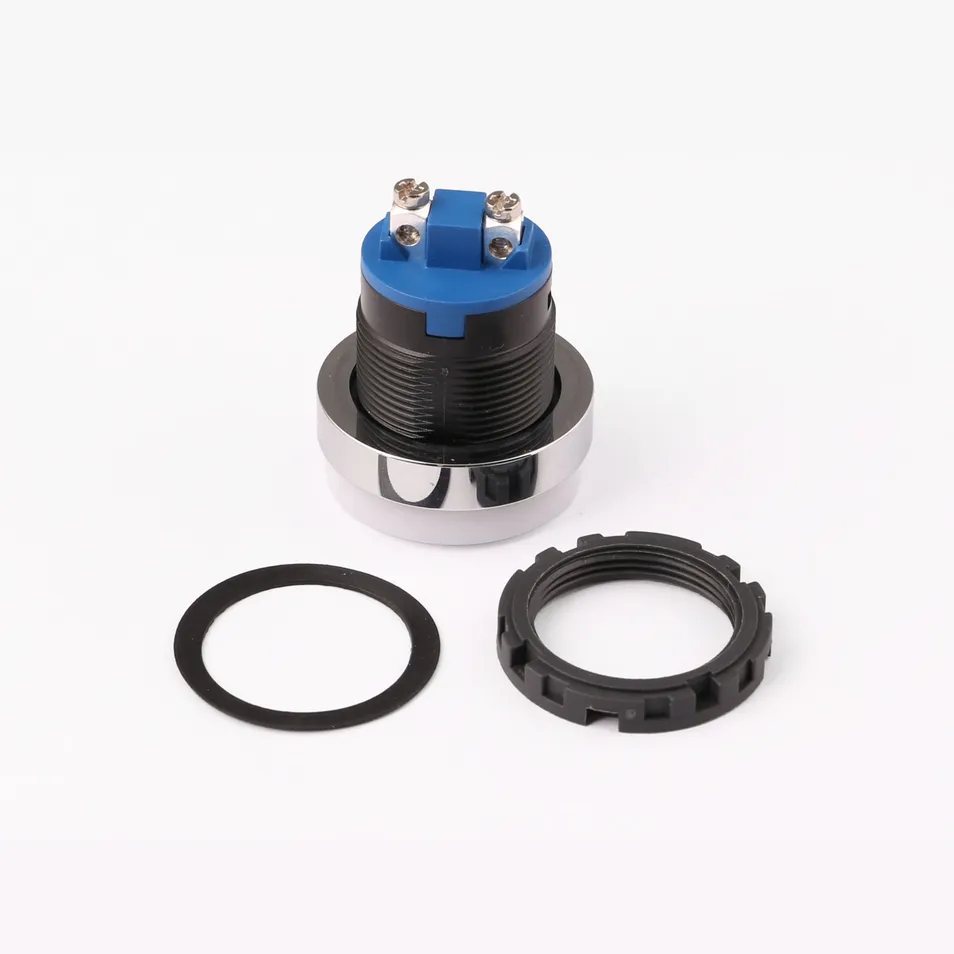

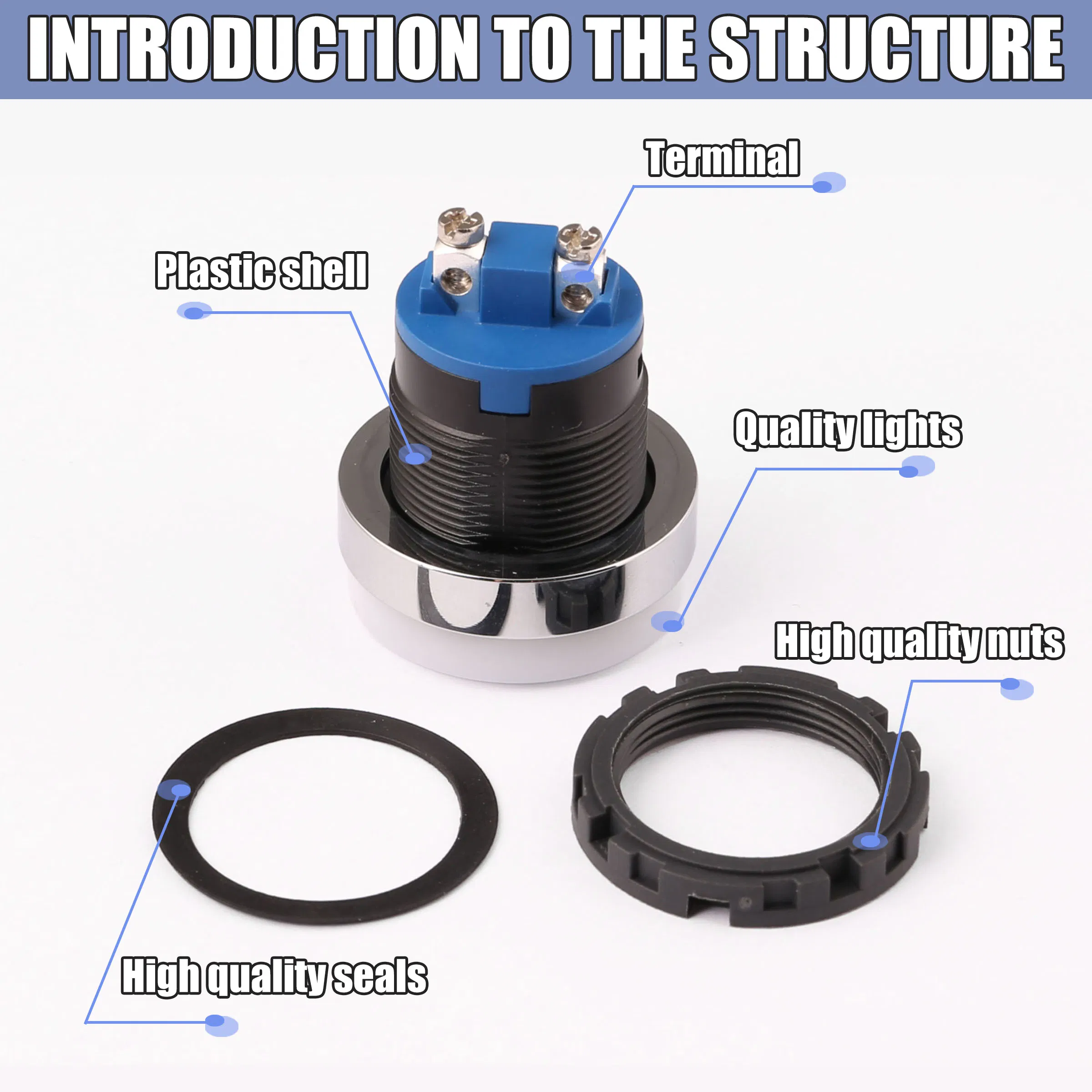

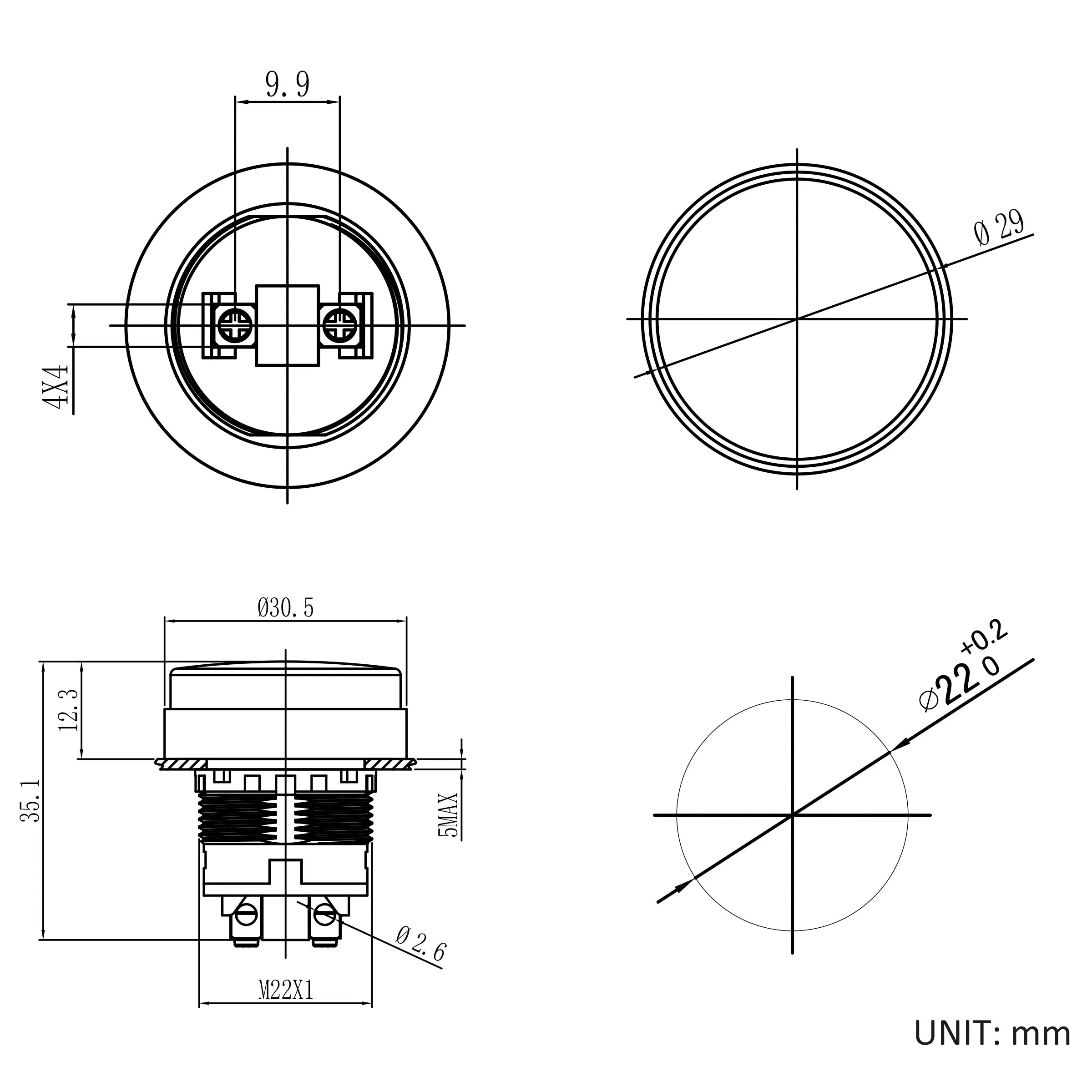

Installation Details:
• Mounting hole size: 22mm / 0.866in
• Components: Matching O-ring + Nuts
• Max Panel thickness: 5mm
• Tightening torque: About 0.6Nm

Ingress Protection & Lifespan

IP65 Waterproof Rating: Fully protected against dust (6) and low-pressure water jets (5) from any direction (6.3mm nozzle, 12.5L/min for at least 3 minutes).

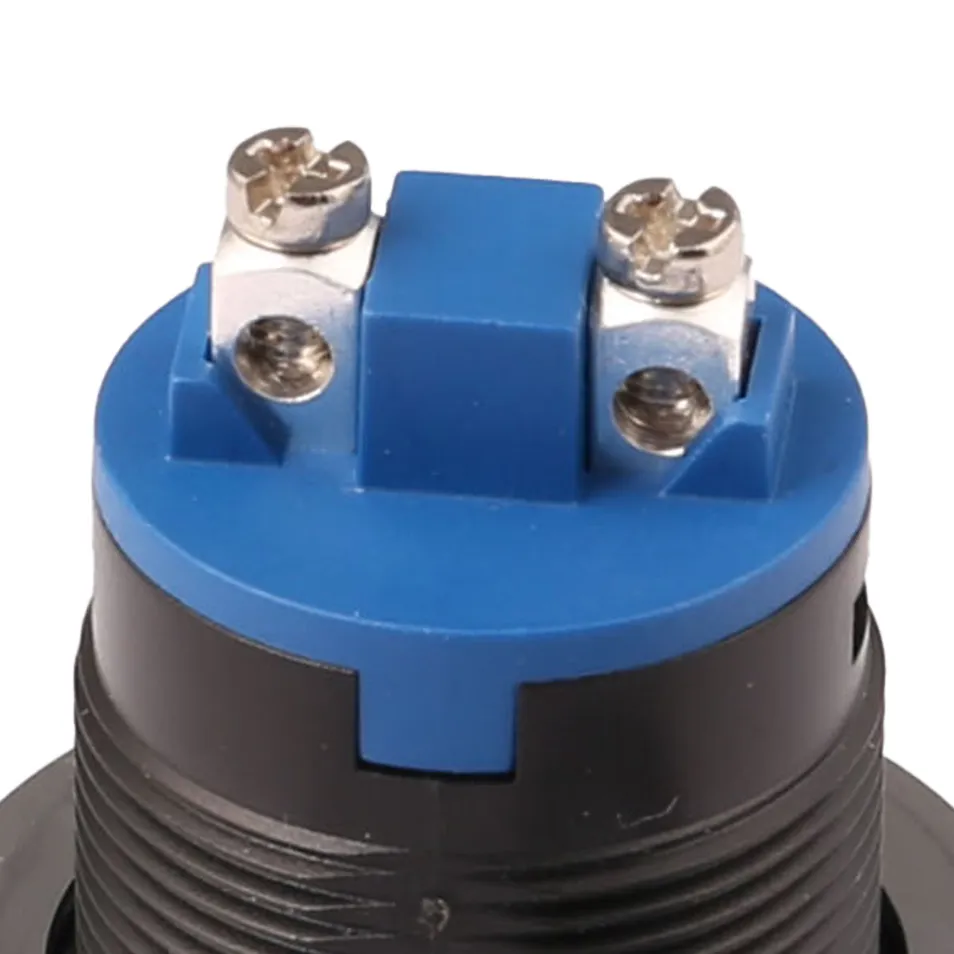

Long Operational Life:
• Rated voltage: 6V / 12V / 24V; 110V / 220V
• Rated current: ≤20mA
• LED lifespan: 50,000 hours

Model Specification

Series Number: HB16 Green Mark Items Highlighted
Neck Mounting Dimensions	8: Ø8mm \| 10: Ø10mm \| 12: Ø12mm 16: Ø16mm \| 22: Ø22mm \| 30: Ø30mm	-
Auxiliary Code	A: Pin terminal \| D: Screw terminal DG: Big domed SM: Flashing indicator \| D/B: Bi-colour LED	-
Form of Structure	No letters: Standard structure S: Ultra-short structure	-
LED Voltage	6V / 12V / 24V / 36V; 110V / 220V	Other voltages can be customized
LED Color	R: Red \| G: Green \| Y: Yellow O: Orange \| B: Blue \| W: White	-

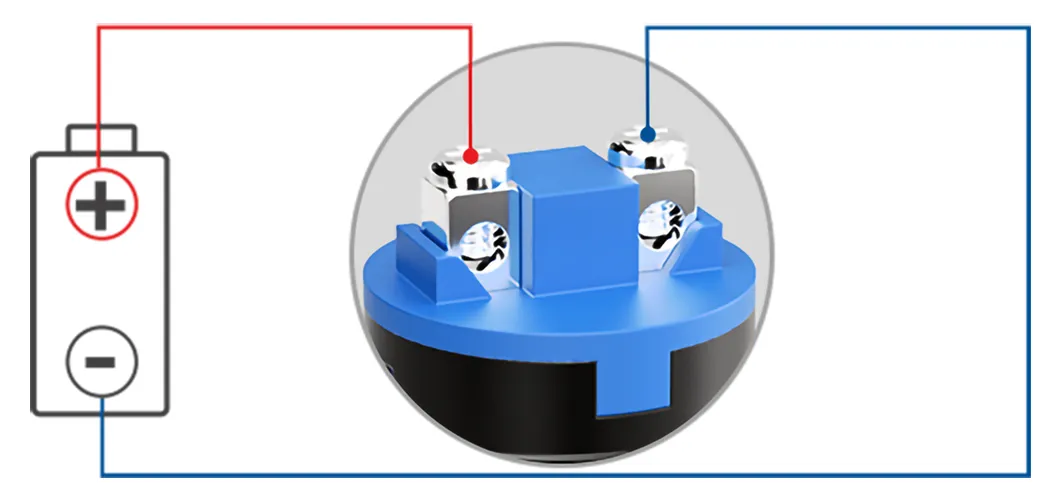

Wiring Example

When powered on, it lights up without distinguishing between positive and negative poles.

Production & Applications

Application Environments

Industrial Automation Equipment

New Energy EV Charging Stations

Marine & Offshore Engineering

Lab & Testing Equipment

Rail Transit Systems

Power Control Cabinets & Distribution Systems

Packaging & Shipping

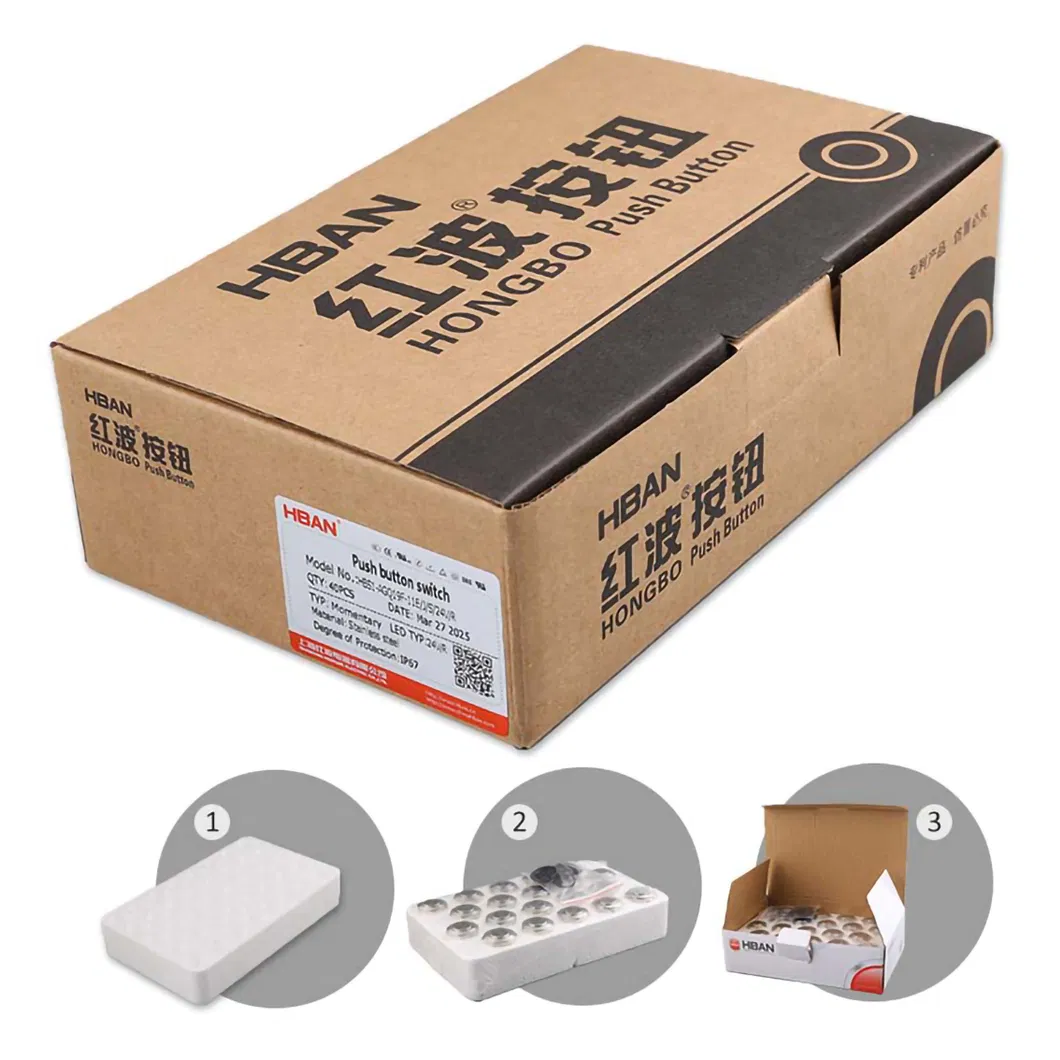

Packaging Process

Standard box contains 20pcs (Including 20pcs O-rings).
Items are placed into separate foam slots to prevent collision.
Foam boxes are nested inside corrugated outer boxes.
Reinforced with strapping tape after packaging.

Shipping & Delivery

Global worldwide shipping available.
Items ship within 3-7 business days of payment receipt.
Delivery time depends on location and destination carrier (generally takes 3-8 business days).

Frequently Asked Questions

Is the material eco-friendly?

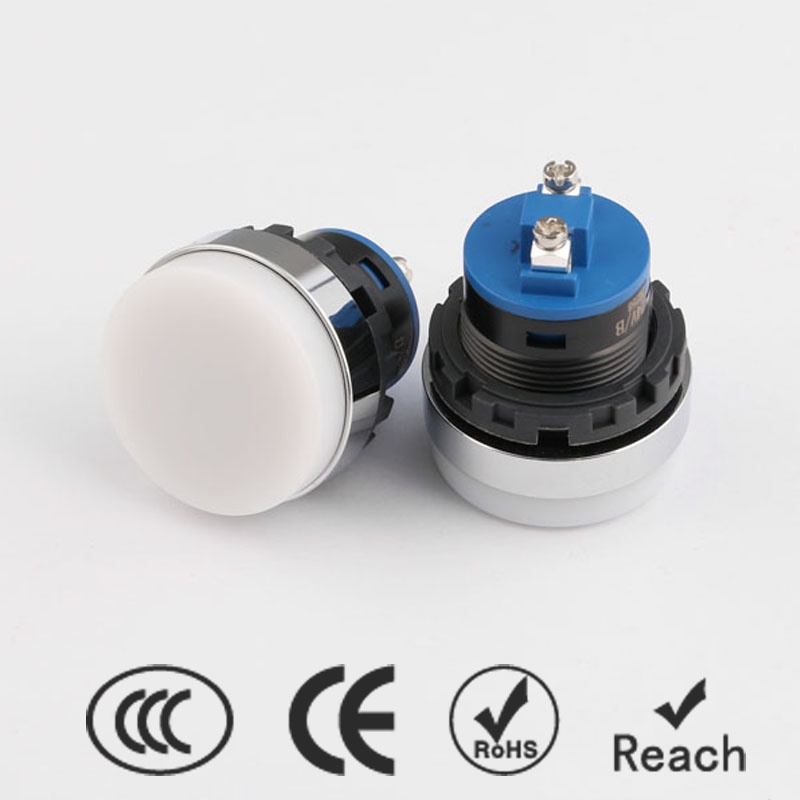

Yes, our products are made of environmentally friendly materials and have passed ROHS and REACH certifications.

Can you provide wiring diagrams or CAD files?

Yes, contact our customer service staff and they will provide the requested documents within 24 hours.

Can you provide OEM/ODM services (custom logos/colors)?

Yes, we support OEM/ODM services. Please note that minimum order quantities apply. Contact our support staff for detailed requirements.

What payment methods are supported?

We support T/T (Wire transfer), Credit Card, and Paypal. (Please ensure that the amount received is consistent with the pro forma invoice amount).

How do you ensure that the products are not damaged during transportation?

We partner with reliable express carriers (DHL, UPS, FedEx) supporting air and sea transit. We put products into individual foam compartments inside corrugated outer boxes, reinforced with outer strapping tape to prevent movement and collision.

Is there a warranty period?

Yes, the standard warranty period for this product is 1 year.
