Hban UV Resistant Large Head LED Indicator Light IP65 for Use in The Transportation Industry

Overview

Basic Info

Model NO. HB16-22DG/LED voltage/G

Delivery 3 Working Days

The Crust Material Plastic

Working Temp. -25℃~+65℃

HS Code 8531801090

Capacity 500,000/Month

Packaging & Delivery

Package Size 21.00cm * 13.00cm * 6.00cm

Gross Weight 1.000kg

Product Description

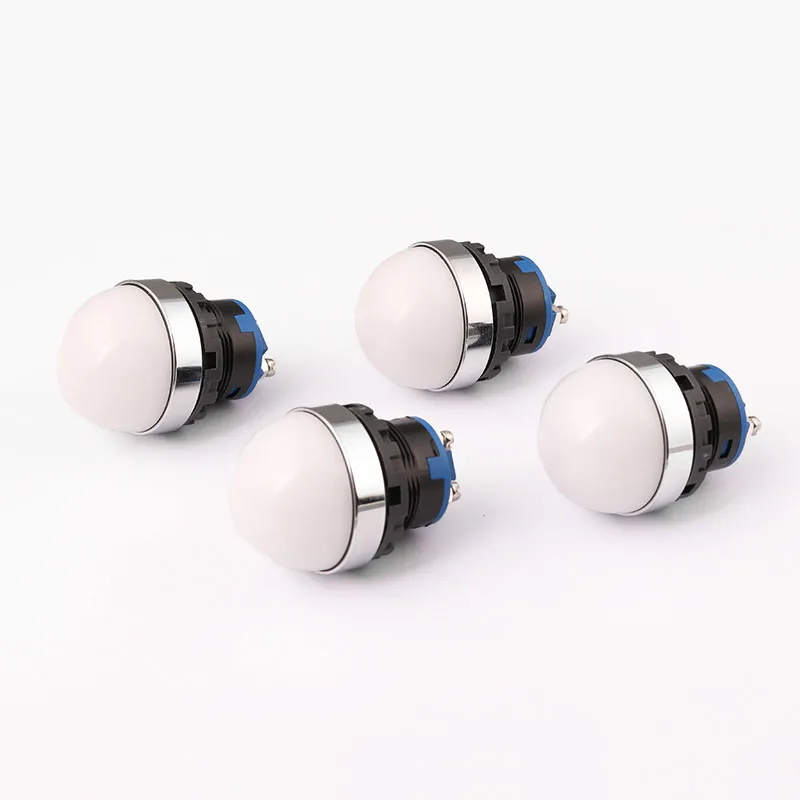

UV Resistant Large Head LED Indicator Light IP65 for Use in The Transportation Industry

Material Characteristics

Plastic has a much lower density than metal, significantly reducing overall weight and making it easy to install, transport, or hang for use. Suitable for temporary engineering, traffic diversion, mobile devices, and other scenarios that require frequent movement.

Chemical Corrosion Resistance

Strong resistance to corrosive substances such as acid, alkali, salt, etc. Suitable for the chemical industry and coastal high humidity environments.

Electric Shock Risk Safety

Plastic is non-conductive and safer in places with electric shock hazards such as power facilities and substations.

Low Maintenance Cost

No need for rust prevention treatment, easy cleaning, high cost-effectiveness for long-term use. High-quality engineering plastics have better impact resistance than glass, are less prone to breakage, and are more reliable in vibration or accidental collisions.

Energy Efficient & Highly Visible

Multiple LED lights are available with large ball heads and high brightness to meet different styles and voltages. The plastic casing has lower heat dissipation requirements and reduces energy consumption. Long-term use significantly reduces electricity costs, making it ideal for solar-powered outdoor scenes.

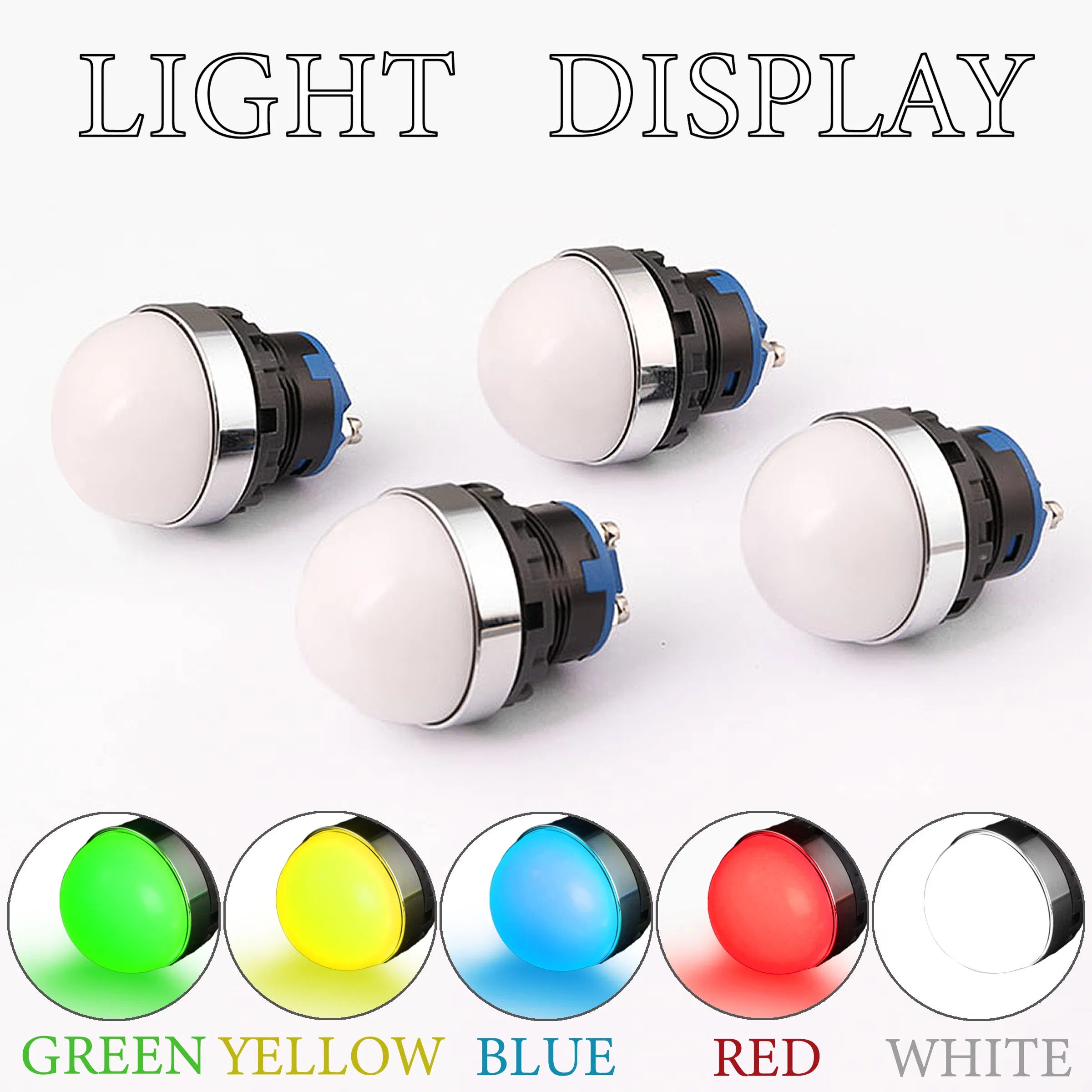

Supports Multi-Color Head Customization

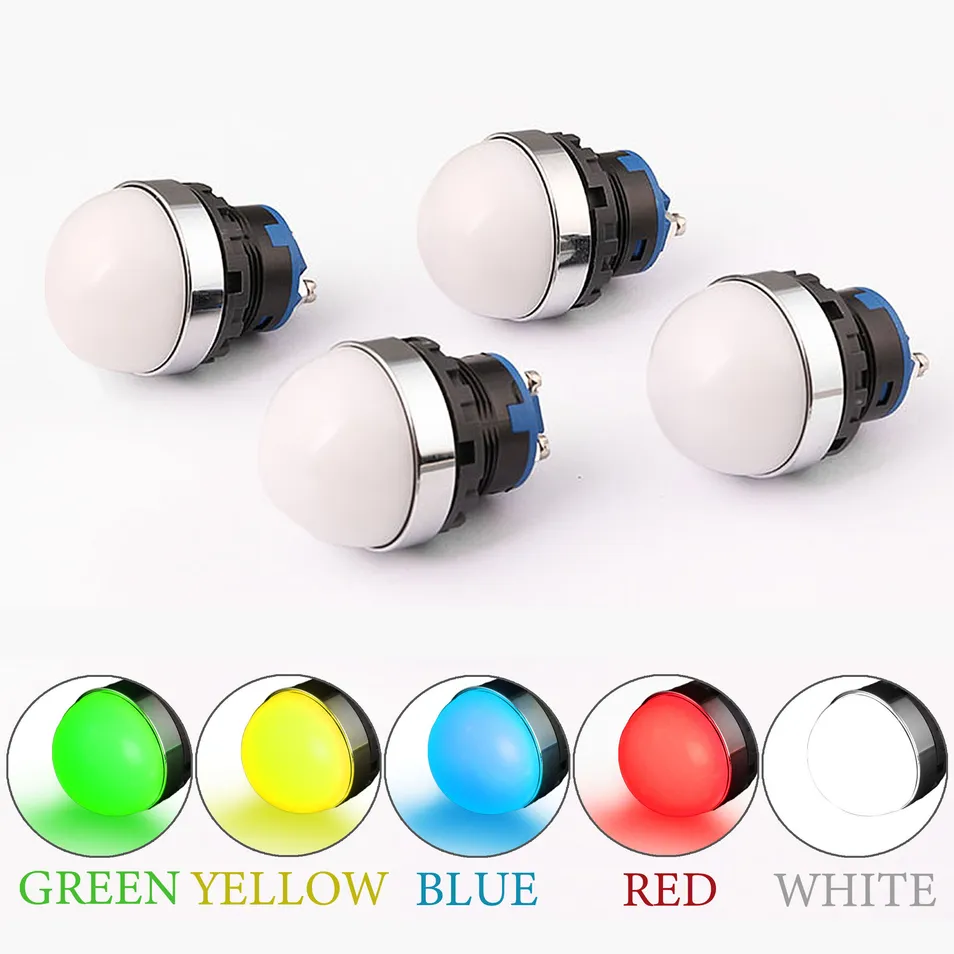

Head Color Selection: Red / Green / Blue / Yellow / White

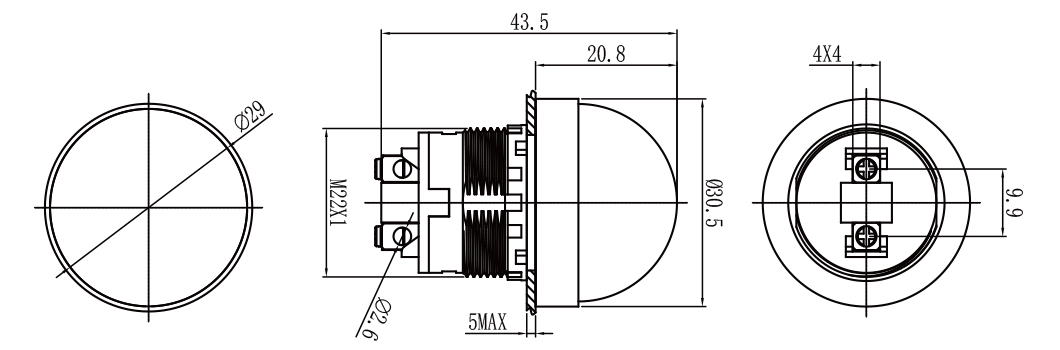

Installation Technical Specs:

Mounting Hole Size: 22mm / 0.866in mounting hole size

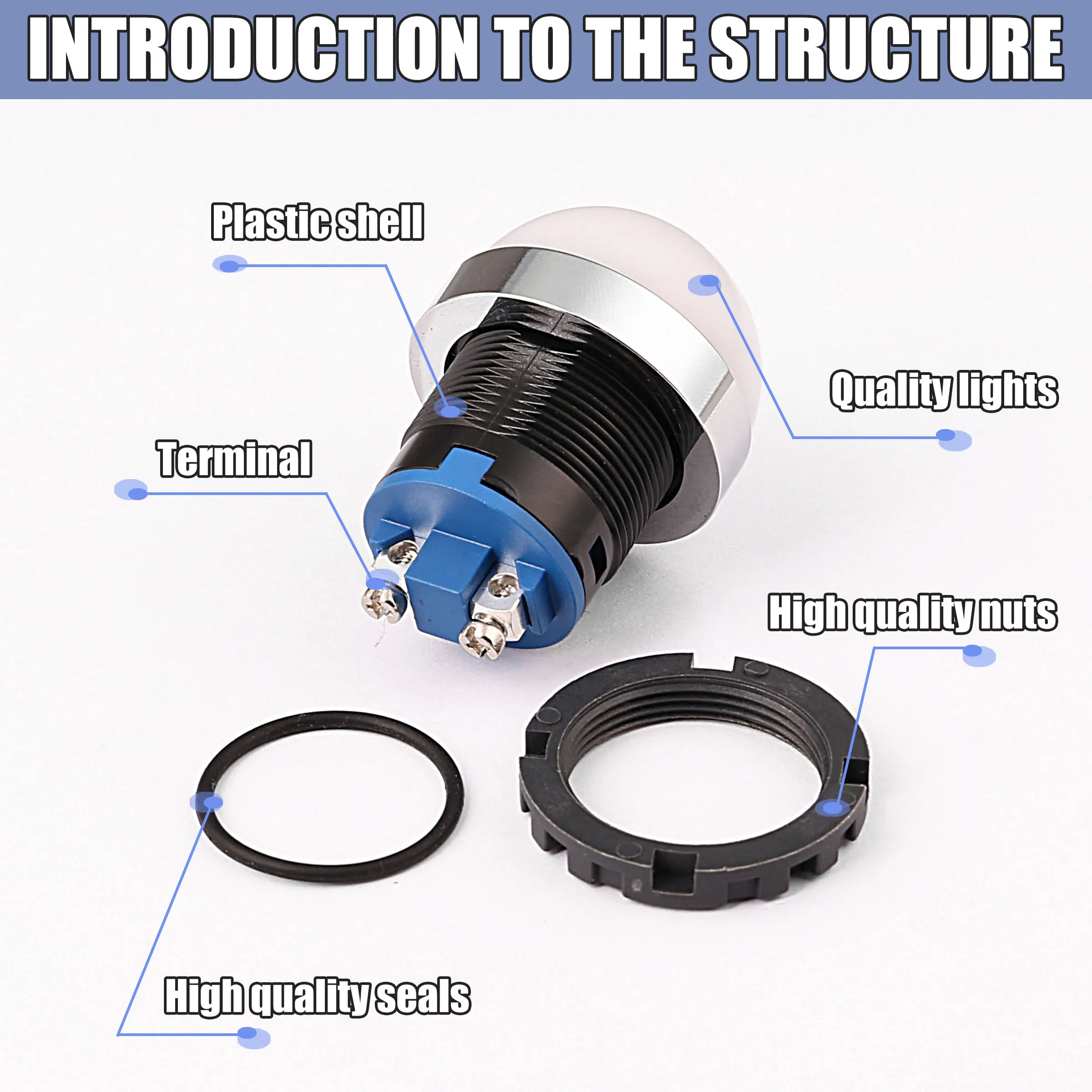

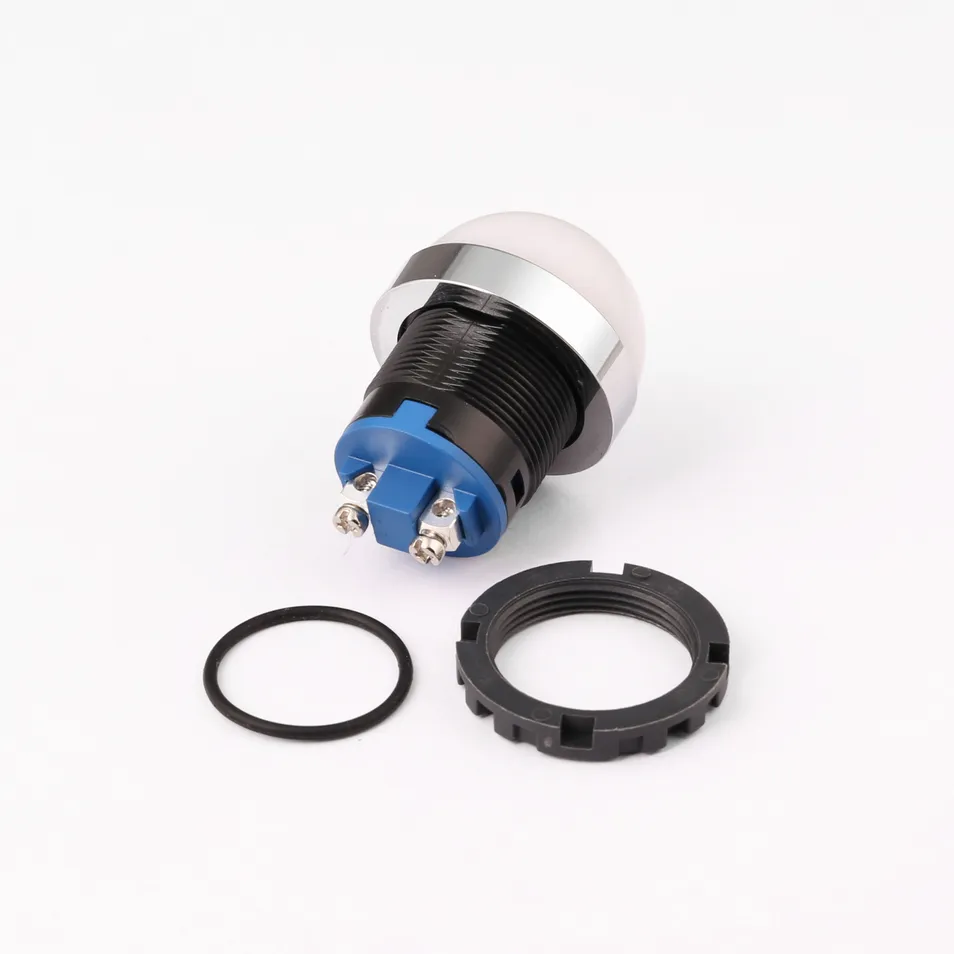

Structure details: Matching O-ring + Nuts
Panel Thickness: 5mm MAX
Tightening Torque: About 0.6N·m

IP65 Waterproof Rating

Rating: IP65 (First Digit 6: Dust-tight; Second Digit 5: Protected against low-pressure water jets).
Protection Level: Protected against dust and water jets (6.3mm nozzle, 12.5L/min from any direction) for no less than 3 minutes.

Long Work Life Indicators

Rated Voltage: 6V/12V/24V; 110V/220V
Rated Current: ≤20mA
Lamp Bead Life: 50,000 hours

Model Specification

Series Number: HB16 (This product series specifications)
Neck Mounting Dimensions	8: Ø8mm \| 10: Ø10mm \| 12: Ø12mm \| 16: Ø16mm \| 22: Ø22mm \| 30: Ø30mm	-
Auxiliary Code	A: Pin terminal \| D: Screw terminal \| DG: Big domed \| SM: Flashing indicator \| D/B: Bi-colour LED	-
Form of Structure	No letters: Standard structure \| S: Ultra-short structure	-
LED Voltage	6V/12V/24V/36V; 110V/220V	Other voltages can be customized
LED Color	R: Red \| G: Green \| Y: Yellow \| O: Orange \| B: Blue \| W: White	-

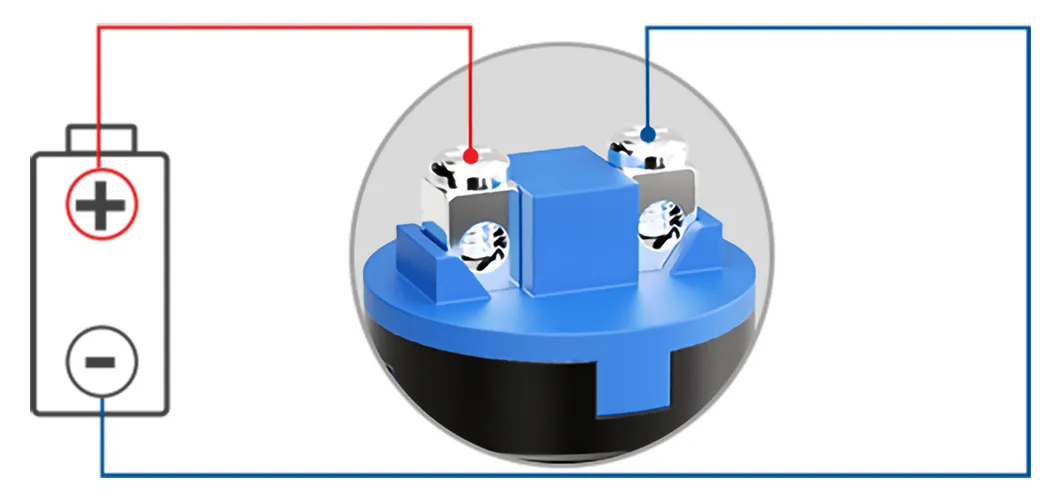

Wiring Example

1. When powered on, it lights up without distinguishing between positive and negative poles.

Facility & Manufacturing

Advanced Production Facility

Product Application Fields

Industrial Automation

EV Charging Stations

Marine Engineering

Lab & Testing Equipment

Rail Transit Systems

Power Control Cabinets

Exhibition & Capability

Our manufacturing plant is a national high-tech enterprise specializing in the development and production of push button switches and indicators, adhering to the concept of "Customer First and Quality First".

The manufacturing factory mainly produces metal waterproof push button switches, plastic push button switches, E-stop switches, micro travel switches, piezoelectric switches, indicators, and buzzers.

With independent R&D capability for high-current push button switches, touch switches, and standard series upgrades, we offer professional engineer support, highly efficient sales processes, and competitive price structures to clients globally.

Packaging & Shipping Details

Standard Secure Packaging

Global Delivery Networks

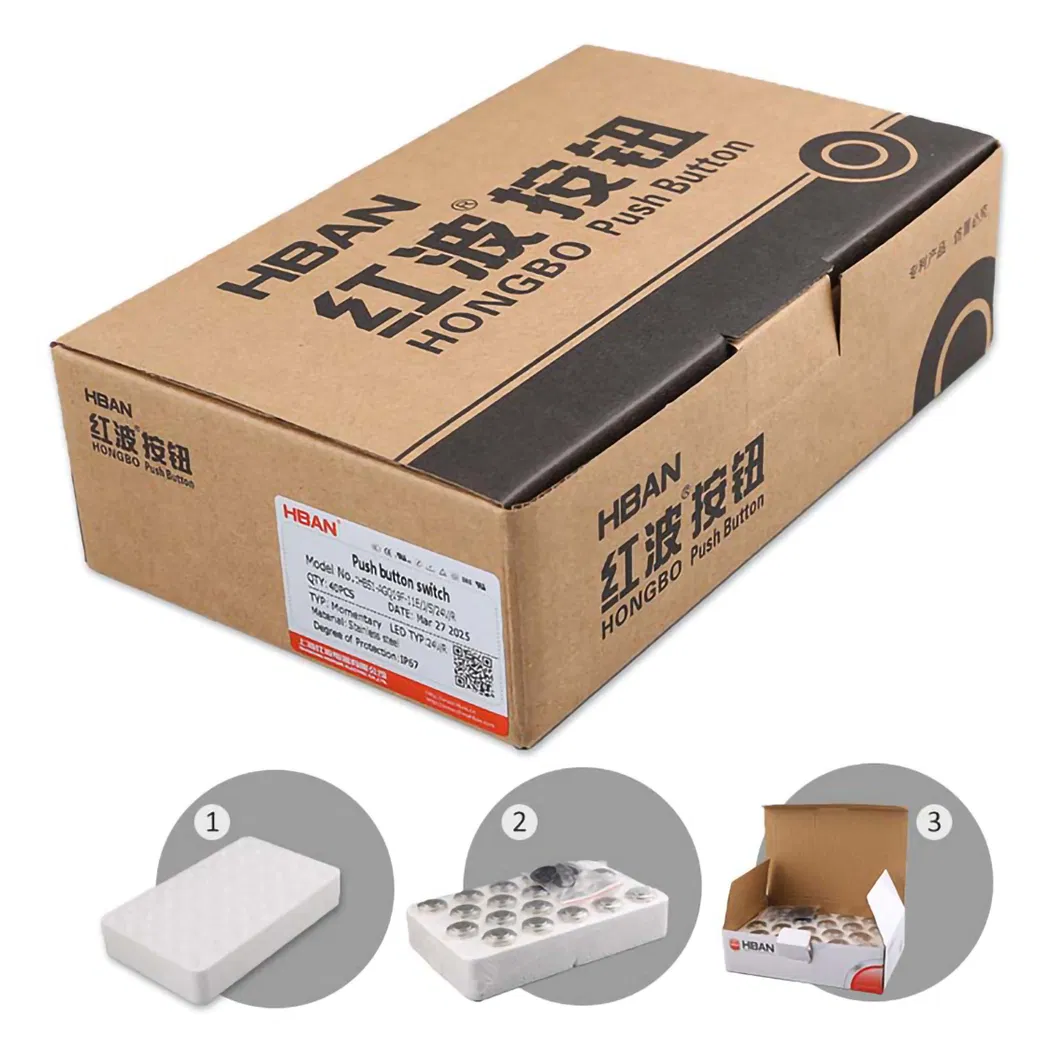

Packaging specifications:
• 20pcs/box (Includes 20pcs O-rings)
• Step 1 & 2: Products placed into separate foam boxes to prevent impact damage.
• Step 3: Foam container inserted into reinforced external boxes containing the O-rings.
• Materials: Heavy-duty corrugated paper boxes secured using reinforced strapping tapes.

Shipping Policies:
• Global destination shipping coverage.
• Standard processing: Items dispatched within 3-7 business days post-payment verification.
• Estimated delivery timelines: Around 3-8 business days depending heavily on transit destinations and logistics factors.

Frequently Asked Questions

Is the material eco-friendly?

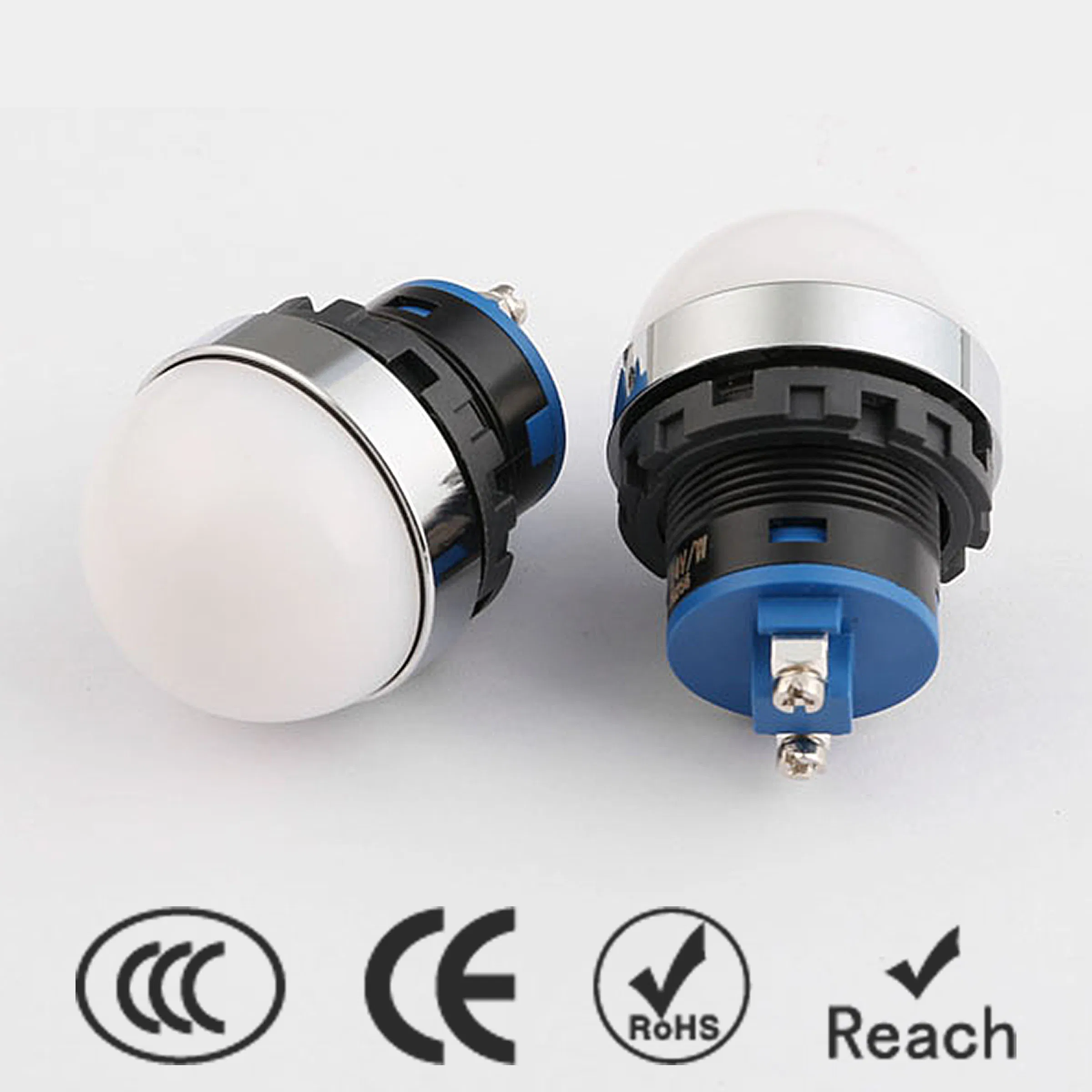

Yes, our products are made of environmentally friendly materials and have passed ROHS and REACH certifications.

Can you provide wiring diagrams or CAD files?

Yes, contact our customer service team and they will provide the necessary design documents within 24 hours.

Can you provide OEM/ODM services (custom logos/colors)?

Yes, we support comprehensive OEM/ODM services. Minimum order quantities (MOQ) apply. Please contact our support team for specific requirements.

What payment methods are supported?

We support T/T (Wire transfer), Credit Card, and Paypal. (Please ensure that the amount received is consistent with the pro forma invoice amount).

How do you ensure that the products are not damaged during transportation?

We package products into separate foam slots inside corrugated packaging boxes reinforced with strapping tape. We cooperate with leading shipping carriers (DHL, UPS, FedEx) supporting air and sea transit.

Is there a product warranty?

Yes, all products are covered by a standard warranty period of 1 year.
